How to Understand ISUZU Powerful Diesel Engines: 4JA1/4JB1/4JJ1/4KH1/4HK1

   4JA1

The 4JA1 with a common displacement of 2.5L, serves as a representative of ISUZU’s first generation inline four-cylinder diesel engines. It has been widely used for commercial vehicles and light trucks, such as ISUZU NHR,NKR, as well as early-generation D-MAX pickup models.

Features:

1. Structure: Inline four-cylinder,water-cooled turbocharged diesel engine.
2. Parameters: Available displacement of 1.8L to 2.5L; maximum output of 78 to 90 HP; maximum torque of 130 to 180 N·m.
3. Performance: Cast iron cylinder block can sustain prolonged heavy-duty operation.

    4JB1

The 4JB1 is a classic inline four-cylinder intercooled turbocharged diesel engine. It is widely fitted to various commercial vehicles including cargo trucks, SUVs and pickups, such as ISUZU N-series light trucks, Ruimai pickups, and it is also modified for some marine equipment and agricultural machinery. Throughout its development history, ISUZU has continuously refined and upgraded the 4JB1 engine and launched multiple variants, including the 4JB1-T and 4JB1-TC.

Features:

1. Structure: Inline four-cylinder layout with direct injection diesel.
2. Parameters: Available displacement of 2.8L; maximum output of 78 HP; maximum low-speed torque from 170 to 220 N·m.
3. Performance: Excellent fuel economy owing to efficient combustion and low-friction structural design.

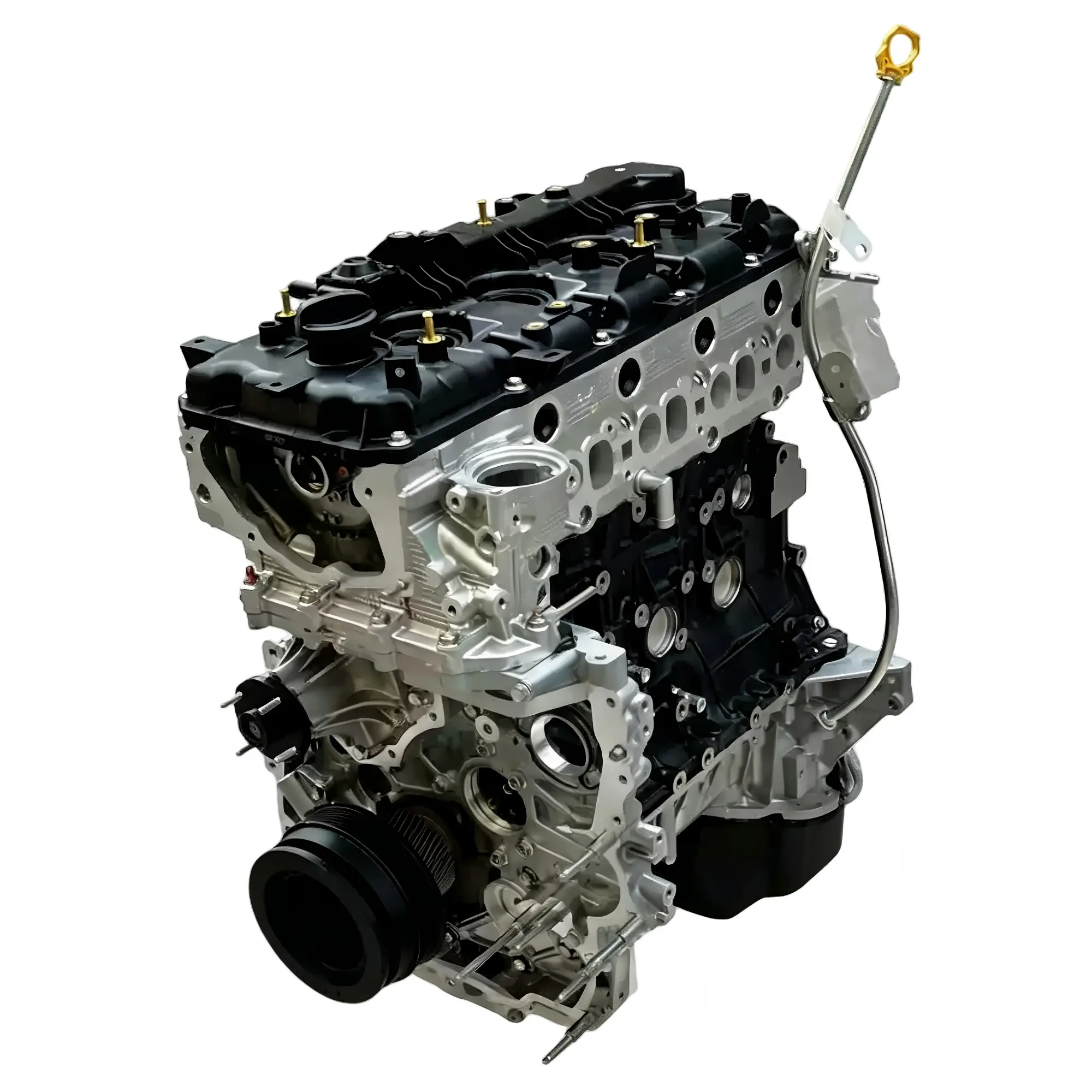

  4JJ1

The 4JJ1 was developed through technical upgrades and optimization of the 4JB1 to satisfy increasingly stringent emission standards and higher energy efficiency requirements. As a new-generation inline four cylinder diesel engine with superior environmental performance and power output, it is widely fitted to vehicles including D-MAX pickups, MU-X SUV and various light trucks, delivering reliable performance for hill climbing, off-road driving and heavy-load transportation.

Features:

1. Structure: Inline four-cylinder with a cast iron cylinder block and aluminum cylinder head.
2. Parameters: Available displacement of 3.0L; maximum output of 177HP; maximum torque from 430-450 N·m.
3. Performance: High-pressurecommon rail direct injection technology greatly enhances fuel utilization efficiency.

  4KH1

The 4KH1 is a classic 3.0L inline four-cylinder diesel engine commonly used for light trucks, pickups and bus chassis. It is equipped on Qingling light and medium-duty trucks including the 100P,700P,FVR and FTR, along with TAGA pickups.

Features:

1. Structure: Turbocharged and intercooled inline four-cylinder layout with a cast iron cylinder block and aluminum cylinder head.
2. Parameters: Available displacement of 3.0L; maximum output of 130HP; maximum torque of 320 N·m.
3. Performance:High-pressure common rail direct injection technology greatly enhances fuel utilization efficiency.

  4HK1

The 4HK1 is a 5.2L inline four-cylinder diesel engine fitted to light and medium-duty trucks including the NPR, NQR,600P and 700P, medium buses,ambulances,fire trucks as well as construction machinery such as excavators, cranes and loaders.

Features:

1. Structure: Inline four-cylinder with EGR exhaust gas re-circulation system and cooling water pipes.
2. Parameters: Available displacement of 5.2L; maximum output of 130 to 190 HP; maximum torque of 676 N·m.
3. Performance: High-pressure common rail direct injection technology greatly enhances fuel utilization efficiency.

With the development of economy and automotive technology, public environmental awareness has strengthened significantly, and the market seeks lower-emission and better performance of diesel engines. ISUZU’s full lineup of engines has been optimized,giving rise to multiple revised models, such as the 4JB1-TC, 4JJ1-TC and 4JJ3-TCX. Suffixes have been added to them to distinguish upgraded models with different technical configurations.

Many people may be curious about the model codes.How are these engines named? What does each number and letter denote? What special meanings lie behind the suffixes,like TC and TCX? By reviewing the development history of ISUZU engine series, we can gain a general understanding of these naming rules and implications.

First digit: Indicate the number of cylinders

For example, the digit “4” in 4JB1 stands for an inline four-cylinder layout; the “6” in 6HK1 represents an inline six-cylinder design.

Middle Letter Combination: Represents the engine series and generation

First letter:

J: 2.5–3.0L diesel engine series for light passenger vehicles and light trucks.

K: 3.0L diesel engine series for medium and light trucks.

H: 5.2–7.8L heavy-duty diesel engine series for heavy trucks.

Second letter:

A: The original base variant under the J series, an early entry-level model with a 2.5L displacement.

B: The second revised iteration of the J series, upgraded to a 2.8L displacement.

J: The third upgraded generation of the J series, upgraded to a 3.0L displacement.

K: The mainstream version under the H series with a 5.19L displacement, equipped with turbocharged, intercooled and high-pressure common rail technology.

H: The high-power version under the K series with a 3.0L displacement.

Last Digit: Marks the base iteration number of the revised models.

Digit “1”: The first-generation base naturally aspirated model.

Digit “3”: The latest third-generation updated model.

Suffix Letters T, C, X

T: Turbocharger. It compresses intake air via a turbo to boost engine power output.

C: Charge Air Cooler. It cools the high-temperature air after turbocharging to increase air density, further improving power and cutting emissions.

X: Equipped with a Variable Geometry Turbocharger (VGS). Compared with standard TC variants, it delivers stronger low-speed torque and superior fuel economy, serving as the high-end upgraded version within the same series.

Compared to the base models, the upgraded engines enjoy greater power output, fuel economy and stronger low-speed torque while consuming less fuel with further optimized fuel efficiency, making them compatible with more light and heavy trucks. The overall comprehensive performance of these five engines mentioned above has steadily improved thanks to the advancement of core power technology, as long as the promotion of supporting Isuzu parts to adapt to extensive vehicle models.
